White High Temperature Tube Furnace For Microwave Detoxifying Treatment Of Organic Waste Water

Name: White High Temperature Tube Furnace For Microwave Detoxifying Treatment Of Organic Waste Water
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-ZGS3012

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

Heating Source : Microwave

Working Temperature : 0~1150℃

Sliding Length : 1200mm

Usage : Fast Heating and Cooling

Temperature Control Precision : ±0.1%

warranty : 1 year

Contact Now

Sliding Tube Furnace For Microwave Detoxifying Treatment Of Organic Waste Water

Product Features

HY-ZGS3012 is a auto sliding microwave tube furnace with a Φ60×130mm quartz working tube that can work continuously under 1150°C.

HY-ZGS3012 uses 3 phase, 380V, 50Hz power and the rated power of the whole furnace is 3kW.

Users can set 40 segments of programmable technical parameters, including temperature, heating time, holding time, cooling time etc.
The Schneider touch screen and display real-time data and plot the data curve, also data can be storaged automatically and users can export data when shut down the machine.

Applications

HY-ZGS3012 can be used for microwave detoxifying treatment of organic waste water, microwave thermal treatment is an environment friendly and economic method for organic waste water treatment.

Technical Parameters

Parameters		HY-ZGS3012
Microwave System	Microwave Output Power	0.10~2.80KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity <2mW/cm²
Thermal Insulation System	T_max	1200°C
	Working Temperature	0~1150°C
	Heating Space (diameter×width)	Φ60×130mm
Temperature Control System	Temperature Measurement Method	thermocouple
	Temperature Measurement Range	0°C~1300°C
	Temperature Control Precision	±0.1%
Atmosphere System	Static Ultimate Vacuum Degree	≤100Pa
Atmosphere System	Atmosphere Range	quick pre-vacuum pumping, capalble of oxidizing gas, inert gas, weak reducing gas etc.
Safety System	Magnetron Alarm	over temperature alarm
Safety System	Furnace Door Protection Alarm	furnace door shutdown sensor
Overall Dimension	Furnace Body(L×W×H)	ca. 530×1000×1200mm
Overall Dimension	Rack(L×W×H)	ca. 900×1200×1500mm

Product Tags:

sliding tube furnace

vertical tube furnace

Wholesale White High Temperature Tube Furnace For Microwave Detoxifying Treatment Of Organic Waste Water from china suppliers

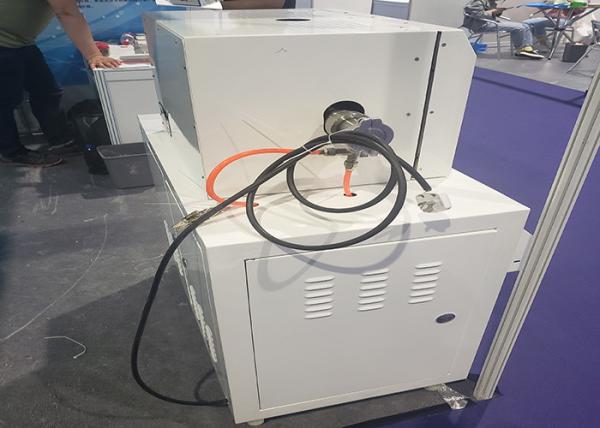

White High Temperature Tube Furnace For Microwave Detoxifying Treatment Of Organic Waste Water Images
