Auto - Feeding Microwave Graphite Oxide Reduction Furnace 300mm Diameter Tube

Name: Auto Feeding Microwave Graphite Oxide Reduction Furnace 300mm Diameter Tube
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-PH12010

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

Name : Graphite Oxide Exfoliation Furnace

Heating Source : Microwave

Working Temperature : 0~950°C

Microwave Leakage Prevention : <2mW/cm2

Temperature Measurement Method : thermocouple

Warranty : 1 year

Contact Now

Auto Feeding Microwave Graphite Oxide Exfoliation Furnace 300mm Diameter Tube

Product Features

Auto Feeding Microwave Graphite Oxide Exfoliation Furnace HY-PH12010 is high power microwave furnace for graphene mass produciton.

Furnace body is welded by 304 stainless steel to prevent microwave from leakage, while portable microwave leakage detector is equiped for microwave leakage intensity measurement.

HY-PH12010 has auto feeding system, sample loading and unloading are operated automatically, while the furnace could run continuously.

HY-PH12010 is equiped with large diameter working tube to ensure high product capacity per time.

Nitrogen atmosphere is adopted as protective atmosphere for graphite exfoliation process.

Applications

HY-PH12010 can be applied to mass production of graphene or nano-graphite oxide, the production capacity can reach up to 10~55kg per day.

Technical Parameters

Parameters		HY-PH12010
Power	Voltage	380V±10V, 50Hz, three phase
Power	Rated Power	25KW
Microwave System	Microwave Output Power	0.10~11.20KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity <2mW/cm²
Thermal Insulation System	T_max	1000°C
	Working Temperature	0~950°C
	Heating Space(D×H)	Φ300×800mm
Temperature Control System	Temperature Measurement Method	thermocouple
	Temperature Measurement Range	0~1300°C
	Temperature Control Precision	±0.1%
Control System	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Safety System	Magnetron Alarm	over temperature alarm

Product Tags:

graphite furnace

graphene furnace

Wholesale Auto - Feeding Microwave Graphite Oxide Reduction Furnace 300mm Diameter Tube from china suppliers

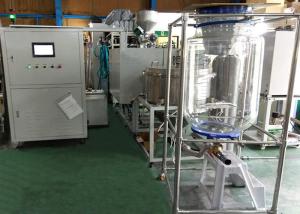

Auto - Feeding Microwave Graphite Oxide Reduction Furnace 300mm Diameter Tube Images
